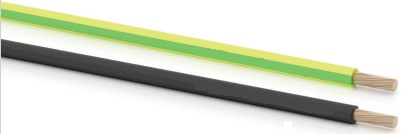

H07Z1-K tinned UV resistant 25 mm² G/G B2ca
Article number
344120113GG
Description
UV resistant safety power cable
- Number of conductors: 1.
- Conductor diameters: 25mm².
- Outer cable diameters: 8,8mm.
- Conductor: flexible electrolytic anneales tinned copper (class 5) according to IEC 60228.
- Insulation: UV resistant polyolefin tye TI7.
- Rated temperature: -40°C to 70°C.
- Rated bending radius: 5 x ø.
- Application: Specially engenieerd for earthing connections in outdoor installations.
Fire behaviour:
- Flame resistant according to IEC 60332-1.
- Fire resistant according to IEC 60332-3-24.
- Low smoke zero halogen according to IEC 60754-1.
- Number of conductors: 1.
- Conductor diameters: 25mm².
- Outer cable diameters: 8,8mm.
- Conductor: flexible electrolytic anneales tinned copper (class 5) according to IEC 60228.
- Insulation: UV resistant polyolefin tye TI7.
- Rated temperature: -40°C to 70°C.
- Rated bending radius: 5 x ø.
- Application: Specially engenieerd for earthing connections in outdoor installations.
Fire behaviour:
- Flame resistant according to IEC 60332-1.
- Fire resistant according to IEC 60332-3-24.
- Low smoke zero halogen according to IEC 60754-1.
