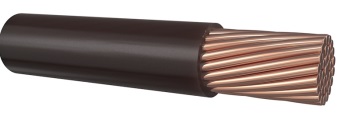

H07V-R 25 mm² Eca Black
Article number
346010113BK
Description
PVC installation power wire Eca
- Number of conductors: 1.
- Conductor diameters: 25mm².
- Outer cable diameters: 8,4mm.
- Conductor: bare copper (class 2).
- Insulation: PVC.
- Outer sheath: PVC.
- Minimum installation temperature: 5°C.
- Rated temperature: -10°C to 70°C.
- Maximum conductor temperature: 90°C.
- Rated bending radius: 6 x ø.
- Application: for low voltage installations for example, in residential construction, utilities, small installations, etc.
- Suitable for internal wiring of appliances or panels or for use in PVC pipe.
- Fire behaviour according to IEC 60332-1-2 (flame retardant).
- Number of conductors: 1.
- Conductor diameters: 25mm².
- Outer cable diameters: 8,4mm.
- Conductor: bare copper (class 2).
- Insulation: PVC.
- Outer sheath: PVC.
- Minimum installation temperature: 5°C.
- Rated temperature: -10°C to 70°C.
- Maximum conductor temperature: 90°C.
- Rated bending radius: 6 x ø.
- Application: for low voltage installations for example, in residential construction, utilities, small installations, etc.
- Suitable for internal wiring of appliances or panels or for use in PVC pipe.
- Fire behaviour according to IEC 60332-1-2 (flame retardant).
Files
Datasheets
| H07V-R |
