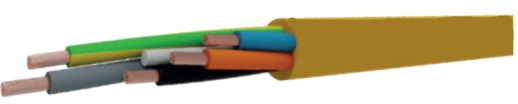

B-tpr OV Geel 3G1,5
Article number
399500004
Description
B-TPR-OV
- Number of conductors: 3.
- Conductor diameters: 1,5mm².
- Outer cable diameters: mm.
- Conductor: flexible bare copper (class 5).
- Insulation: TPR.
- Outer sheath: TPR (yellow).
- Rated temperature after installation without vibrations: -40°C to 90°C.
Characteristics:
- Halogen free.
- High temperature tolerance.
- UV and ozone resistant.
- Highly chemical resistant.
- Highly oil and petrol resistant.
Application:
- Suitable for public lightning poles.
- Application in the open air is possible, wihtout the cable aging quickly due to weather influences.
- Number of conductors: 3.
- Conductor diameters: 1,5mm².
- Outer cable diameters: mm.
- Conductor: flexible bare copper (class 5).
- Insulation: TPR.
- Outer sheath: TPR (yellow).
- Rated temperature after installation without vibrations: -40°C to 90°C.
Characteristics:
- Halogen free.
- High temperature tolerance.
- UV and ozone resistant.
- Highly chemical resistant.
- Highly oil and petrol resistant.
Application:
- Suitable for public lightning poles.
- Application in the open air is possible, wihtout the cable aging quickly due to weather influences.
Files
Datasheets
| B-TPR |
