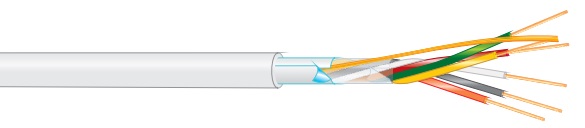

Li-Y(st)Y Alarmkabel Cca 6 x 0,22 mm Wit
Article number
336200602
Description
Flexible shielded alarm cable
- Number of conductors: 6.
- Conductor diameters: 0,22mm².
- Outer cable diameters: 4,1mm.
- Conductor: flexible bare copper (class 5).
- Insulation: PVC.
- Shielding: aluminium/polyester tape.
- Outer sheath: PVC.
- Rated temperature: -15°C to 70°C.
- Maximum conductor temperature: 70°C.
- Rated bending raius: 10 x ø.
- Application: used for the connection and installation of alarmsystem in buildings.
- Fire behaviour according to Cca-s3,d0,a3.
Core identification:
- Six cores: white, yellow, green, dark blue, grey and orange.
- Eight cores: white, yellow, green, dark blue, grey, orange, brown and purple.
- Number of conductors: 6.
- Conductor diameters: 0,22mm².
- Outer cable diameters: 4,1mm.
- Conductor: flexible bare copper (class 5).
- Insulation: PVC.
- Shielding: aluminium/polyester tape.
- Outer sheath: PVC.
- Rated temperature: -15°C to 70°C.
- Maximum conductor temperature: 70°C.
- Rated bending raius: 10 x ø.
- Application: used for the connection and installation of alarmsystem in buildings.
- Fire behaviour according to Cca-s3,d0,a3.
Core identification:
- Six cores: white, yellow, green, dark blue, grey and orange.
- Eight cores: white, yellow, green, dark blue, grey, orange, brown and purple.
